TY-560/760TB
Double Chamber Type
Vacuum Packaging Machine

Product introduction

Consultation process: Provide product type, size, packaging quantity, workflow, and budget
Let us find the best solution for you

TY-560/760TB
Double Chamber Type
Vacuum Packaging Machine

Product Description

This model is a fully customized machine from YIZUO.
Mechanical characteristics include:
- It features two vacuum chambers, but only one can operate at a time.
- In comparison to customers purchasing single-chamber vacuum packaging machines, when one chamber is in operation, you can place products in the other chamber.
- This increases product packaging efficiency and reduces the time spent waiting to place products in the vacuum chamber.
- This process also extends the lifespan of the machine, making your sealing line more durable because the cooling time for the machine's sealing line is sufficient.

Don't hesitate any longer; upgrade your packaging process now and enjoy a more efficient packaging flow, increasing productivity!
Product Details
Specification
  • 50 sets of memory settings intelligent control panel
  • #304 stainless steel body and top cover
  • German Pfeiffer vacuum pump (exhaust capacity: 21M^3/hr) - Can be adjusted according to customer requirements
  • Motor overload protection
  • Sealing protection device
  • Automatic display for vacuum oil replacement
  • Vacuum stop
  • Emergency stop
  • Cooling device
  • Manual press cover, automatic open cover
  • Heavy-duty wheels with brakes
型號
Model
TY-560TB TY-760TB
機械尺寸
Machine size
1250x680x1000mm 915x460x1130mm
真空槽尺寸
Chamber dimension
540x490x120mm 820x560x180mm
封口座長度
Sealing length
500mm*2 800mm*4
電源(依各國規定)
Power supply(upon area)
220V 3PH 220V 3PH

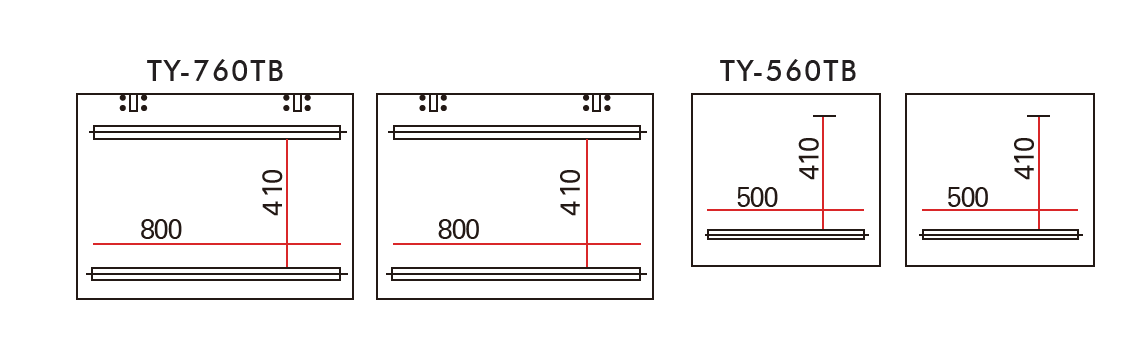

真空槽平面圖
Chamber drawing
